bayesSSM

bayesSSM is an R package offering a set of tools for performing Bayesian inference in state-space models (SSMs). It implements the Particle Marginal Metropolis-Hastings (PMMH) in the main function pmmh
for Bayesian inference in SSMs.

Why bayesSSM?

While there are several alternative packages available for performing Particle MCMC bayesSSM is designed to be simple and easy to use. It was developed as a procrastination task during my Master’s thesis about Particle MCMC, since I was implementing everything from scratch anyway. Everything is written in R, so performance is not the best.

Installation

You can install the latest stable version of bayesSSM from CRAN with:

install.packages("bayesSSM")

or the development version from GitHub with:

# install.packages("pak")
pak::pak("BjarkeHautop/bayesSSM")

Example

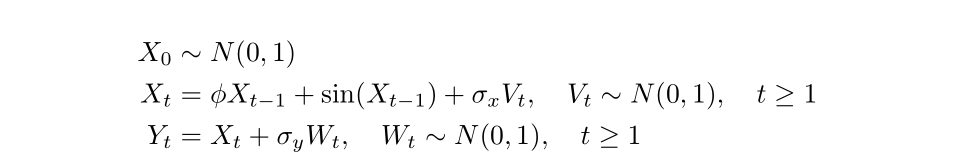

Consider the following SSM:

$$\begin{aligned} X_1 &\sim N(0,1) \\ X_t&=\phi X_{t-1}+\sin(X_{t-1})+\sigma_x V_t, \quad V_t \sim N(0,1) \\ Y_t&=X_t+\sigma_y W_t, \quad W_t \sim N(0, 1). \end{aligned}$$

Let’s first simulate some data from this model with $\phi = 0.8$, $\sigma_x = 1$, and $\sigma_y = 0.5$.

t_val <- 20
phi_val <- 0.8
sigma_x_val <- 1
sigma_y_val <- 0.5

x <- numeric(t_val)
y <- numeric(t_val)
x[1] <- rnorm(1, mean = 0, sd = sigma_x_val)
y[1] <- rnorm(1, mean = x[1], sd = sigma_y_val)
for (t in 2:t_val) {
  x[t] <- phi_val * x[t - 1] + sin(x[t - 1]) + rnorm(1,
    mean = 0,
    sd = sigma_x_val
  )
  y[t] <- x[t] + rnorm(1, mean = 0, sd = sigma_y_val)
}

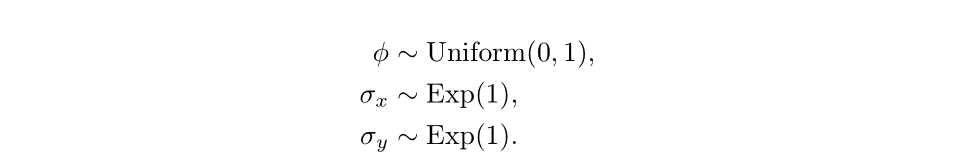

We define the priors for our model as follows:

$$\begin{aligned} \phi &\sim \text{Uniform}(0,1), \\ \sigma_x &\sim \text{Exp}(1), \\ \sigma_y &\sim \text{Exp}(1). \end{aligned}$$

We can use pmmh to perform Bayesian inference on this model. To use pmmh we need to define the functions for the SSM and the priors. The functions init_fn, transition_fn should be functions that simulates the latent states. They must contain the argument particles, which is a vector of particles, and can contain any other arguments. The function log_likelihood_fn should be a function that calculates the log-likelihood of the observed data given the latent state variables. It must contain the arguments y and particles.

The priors for the parameters must be defined as log-prior functions. Every parameter from init_fn, transition_fn, and log_likelihood_fn must have a corresponding log-prior function.

init_fn <- function(particles) {
  stats::rnorm(particles, mean = 0, sd = 1)
}
transition_fn <- function(particles, phi, sigma_x) {
  phi * particles + sin(particles) +
    stats::rnorm(length(particles), mean = 0, sd = sigma_x)
}
log_likelihood_fn <- function(y, particles, sigma_y) {
  stats::dnorm(y, mean = particles, sd = sigma_y, log = TRUE)
}

log_prior_phi <- function(phi) {
  stats::dunif(phi, min = 0, max = 1, log = TRUE)
}
log_prior_sigma_x <- function(sigma) {
  stats::dexp(sigma, rate = 1, log = TRUE)
}
log_prior_sigma_y <- function(sigma) {
  stats::dexp(sigma, rate = 1, log = TRUE)
}

log_priors <- list(
  phi = log_prior_phi,
  sigma_x = log_prior_sigma_x,
  sigma_y = log_prior_sigma_y
)

Now we can run the PMMH algorithm using the pmmh function. For this README we use a lower number of samples and a smaller burn-in period, and also modify the pilot chains to only use 200 samples. This is to make the example run faster.

library(bayesSSM)

result <- pmmh(
  y = y,
  m = 500, # number of MCMC samples
  init_fn = init_fn,
  transition_fn = transition_fn,
  log_likelihood_fn = log_likelihood_fn,
  log_priors = log_priors,
  pilot_init_params = list(
    c(phi = 0.4, sigma_x = 0.4, sigma_y = 0.4),
    c(phi = 0.8, sigma_x = 0.8, sigma_y = 0.8)
  ),
  burn_in = 50,
  num_chains = 2,
  seed = 1405,
  tune_control = default_tune_control(pilot_m = 200, pilot_burn_in = 10)
)
#> Running chain 1...
#> Running pilot chain for tuning...
#> Using 63 particles for PMMH:
#> Running particle MCMC chain with tuned settings...
#> Running chain 2...
#> Running pilot chain for tuning...
#> Using 50 particles for PMMH:
#> Running particle MCMC chain with tuned settings...
#> PMMH Results Summary:
#>  Parameter Mean   SD Median CI Lower.2.5% CI Upper.97.5% ESS  Rhat
#>        phi 0.65 0.16   0.68          0.23           0.91   8 1.169
#>    sigma_x 1.14 0.30   1.13          0.60           1.94  29 1.012
#>    sigma_y 0.61 0.27   0.60          0.14           1.14  28 1.093
#> Warning in pmmh(y = y, m = 500, init_fn = init_fn, transition_fn =
#> transition_fn, : Some ESS values are below 400, indicating poor mixing.
#> Consider running the chains for more iterations.
#> Warning in pmmh(y = y, m = 500, init_fn = init_fn, transition_fn = transition_fn, :
#> Some Rhat values are above 1.01, indicating that the chains have not converged.
#> Consider running the chains for more iterations and/or increase burn_in.

We get convergence warnings as expected due to the small number of iterations.

State-space Models

A state-space model (SSM) has the structure given in the following directed acyclic graph (DAG):

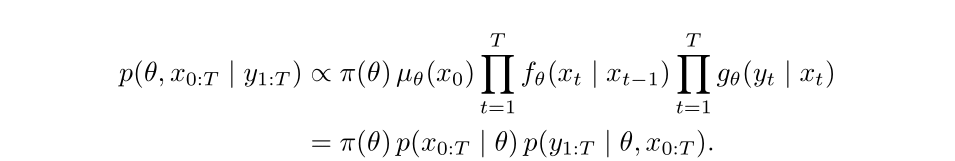

The core function, pmmh, implements the Particle Marginal Metropolis-Hastings, which is an algorithm that first generates a set of $N$ particles to approximate the likelihood and then uses this approximation in the acceptance probability. The implementation automatically tunes the number of particles and the proposal distribution for the parameters.
